The project involved...


Product design


Packaging design


Marketing & video content creation

about this project

This project was focussed on implementing a new design concept to Working at Height sectors, enabling the user to easily 'clip-in' or 'clip-out' a pulley to the working line during the task at hand.

PulleyOne

In greater detail

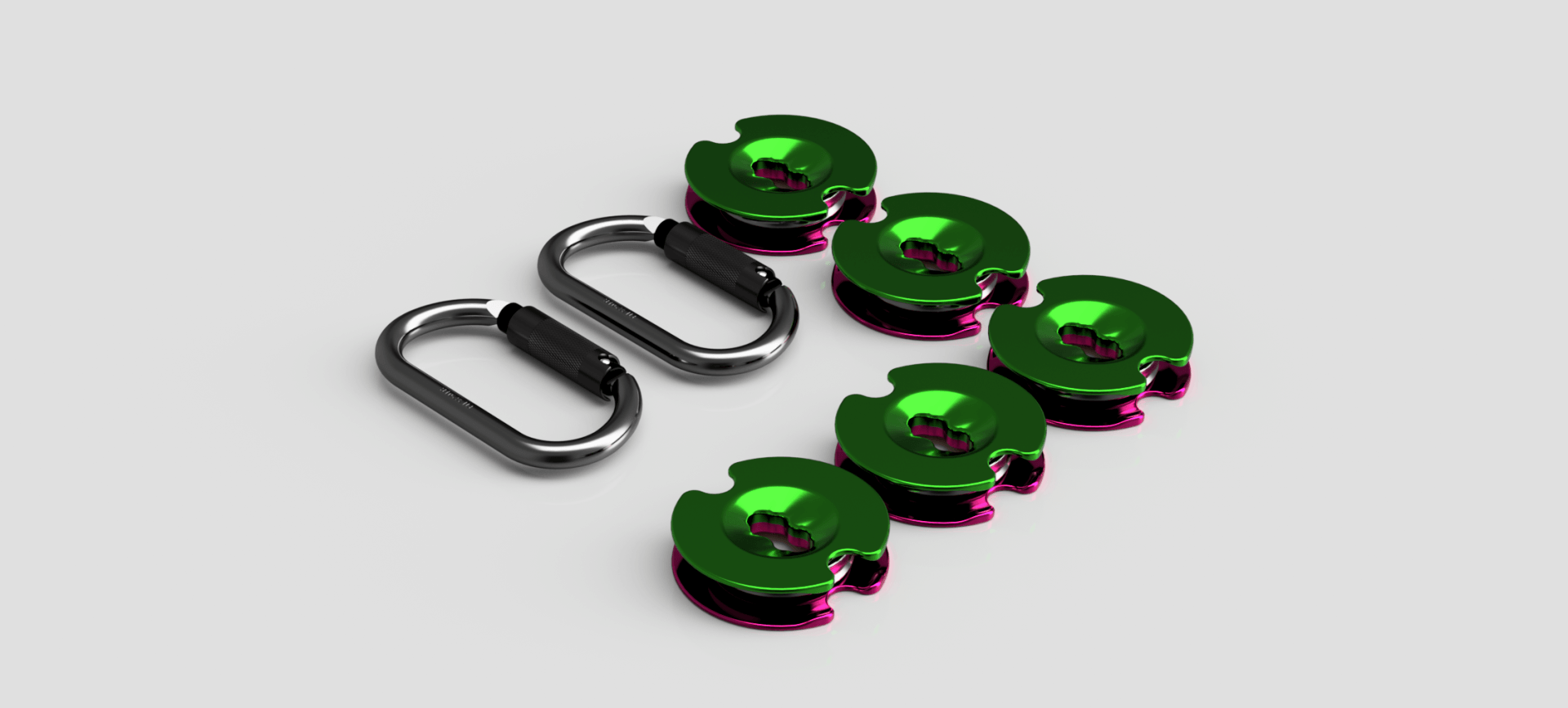

The design of the PulleyOne is highly considered, featuring protrusions on the inner-side of each sideplate to help captivate the rope, a connection aperture embedded within the wheel which allows two karabiners to be attached, cut-outs on each side plate to ease karabiner installation, and an innovative design approach with the wheel to allow ropes up to, and including 11.5mm.

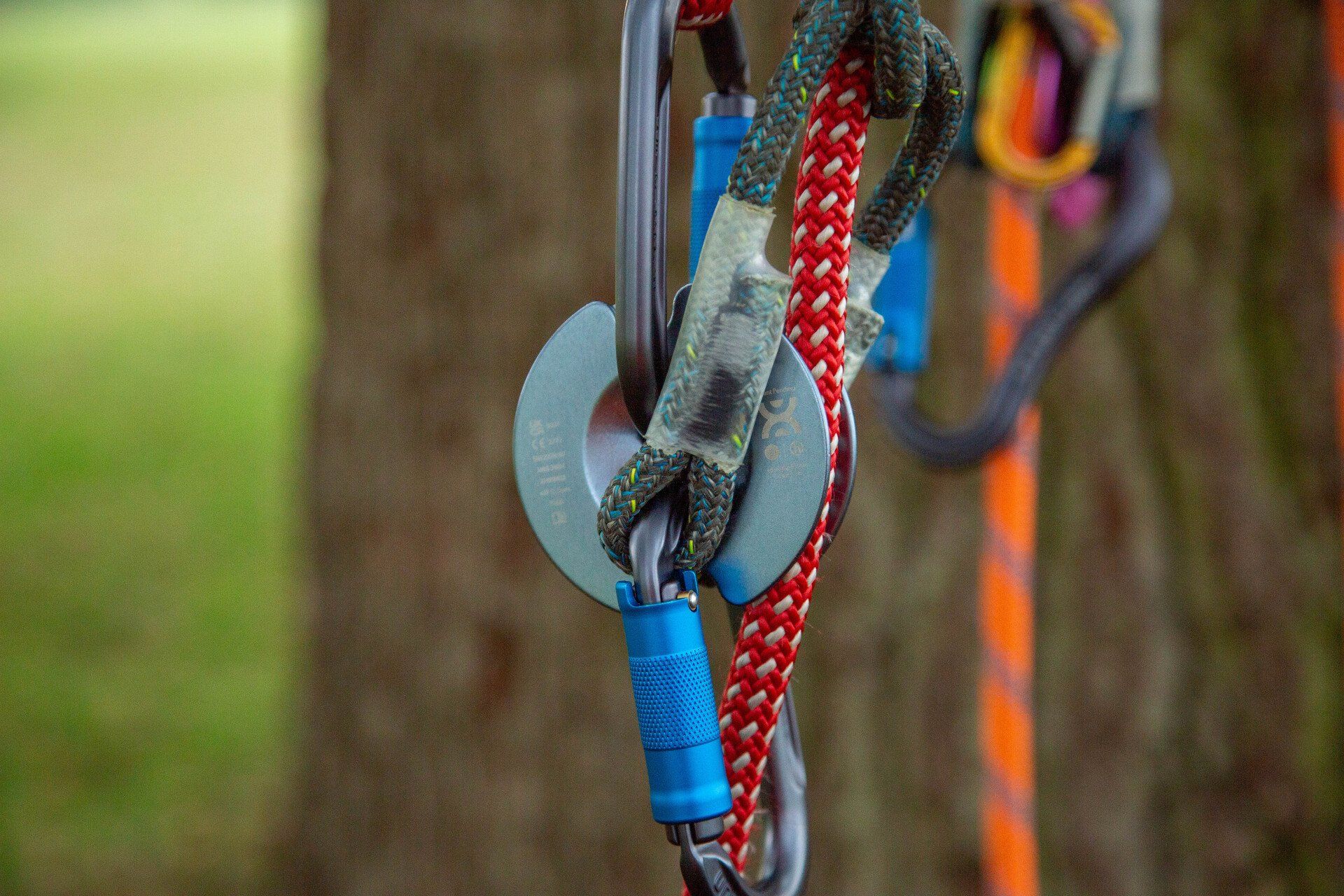

The PulleyOne has been designed for Working at Height sectors, including rope access, arboristry, hauling, and rescue. One of the main benefits of the PulleyOne is that it can be easily introduced or removed whilst the system has been set up. The PulleyOne can also be used for recreational applications including climbing.

Exclusively available from At Height UK.


Weight 140g

MBS 36kN

Rope Ø ≤ 11.5mm

Patent Pending No. 2205034.8

UK Registration Design 6171217

Europe Registered Design 009084551

@Jammy.Design

A Collaboration with At Height UK

Through extensive rapid prototyping and product testing days, every aspect of the PulleyOne's design is highly considered to maintain & exceed efficiency, strength, and ease of use compared to existing pulleys.

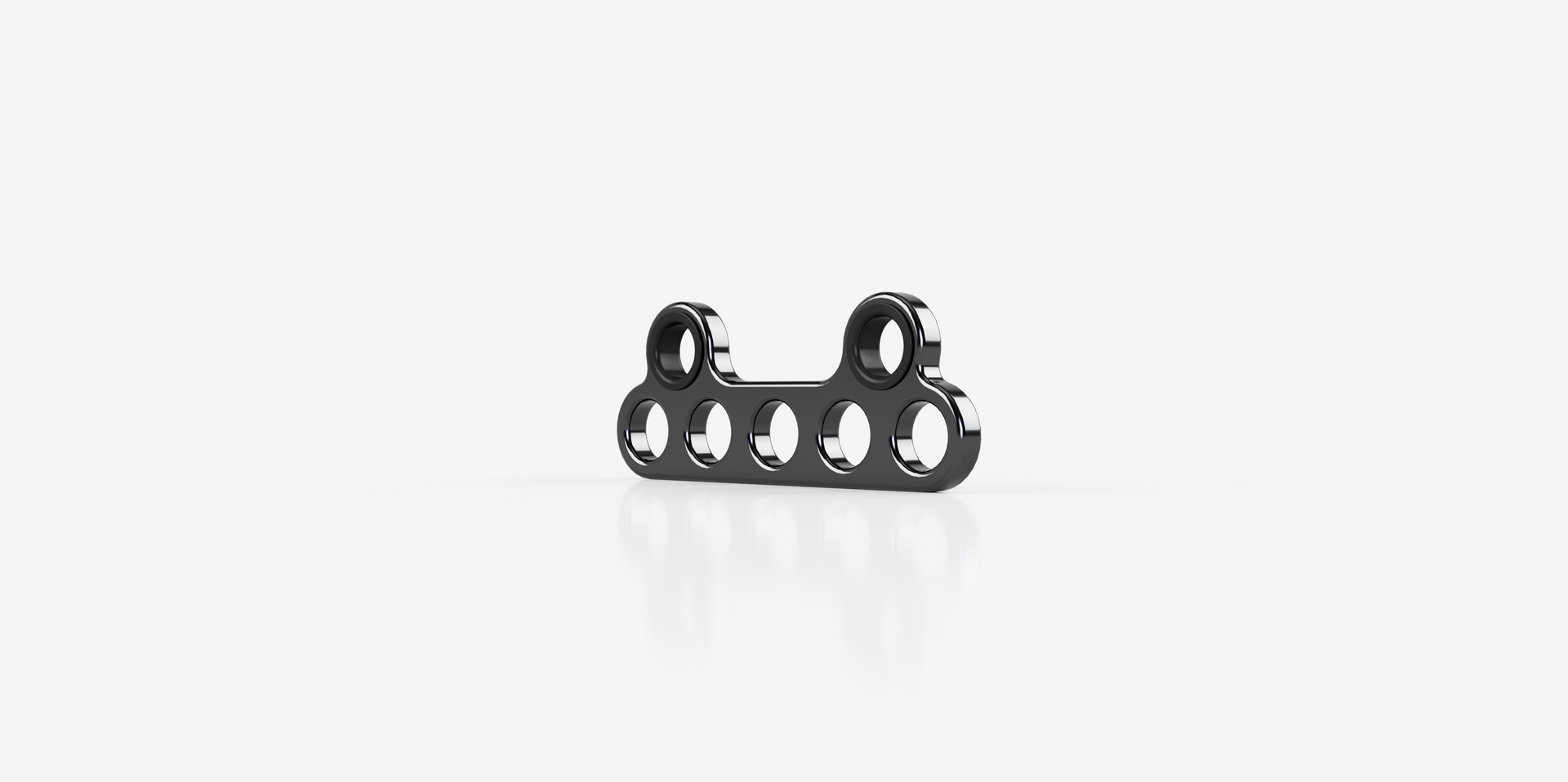

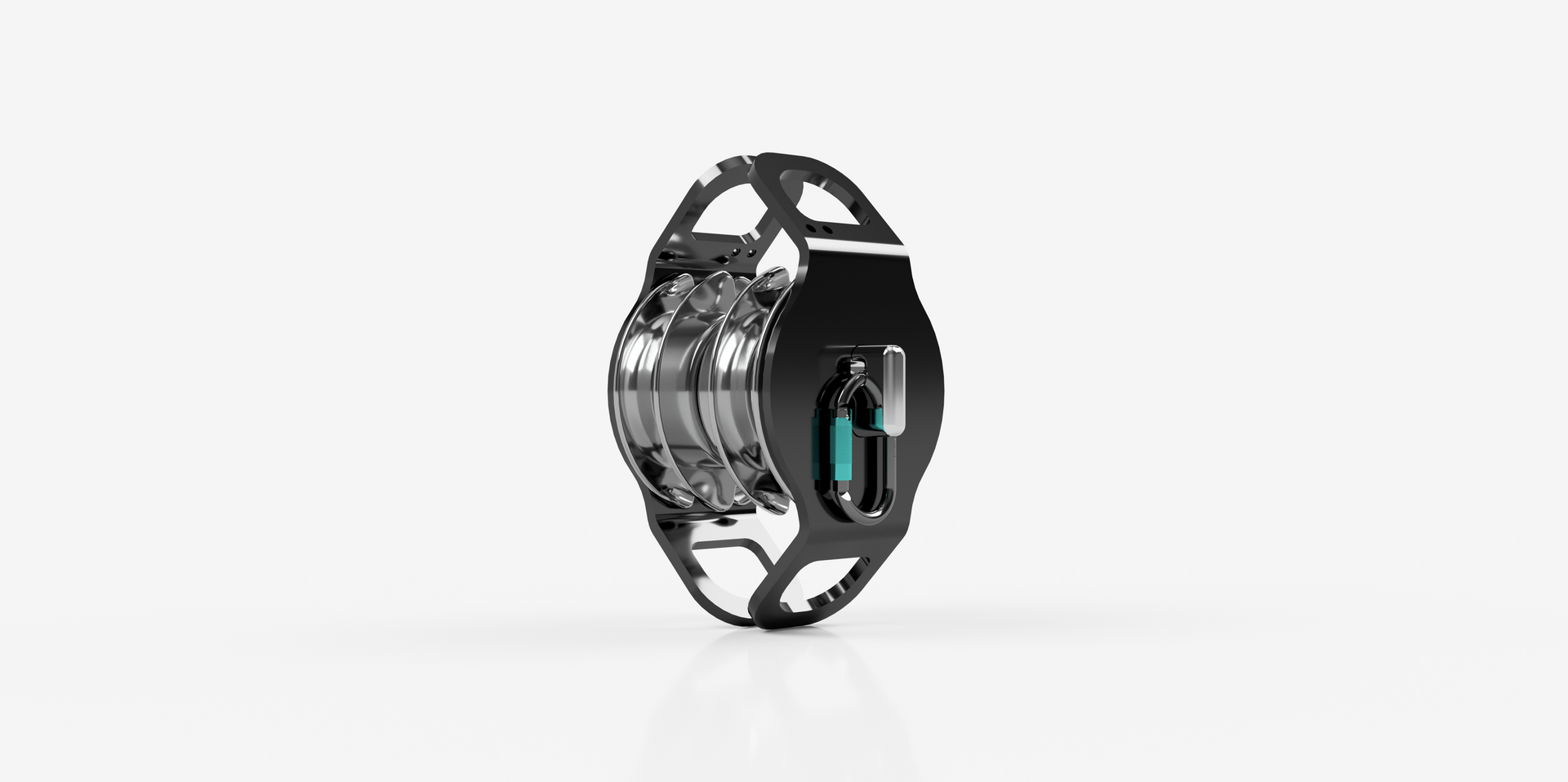

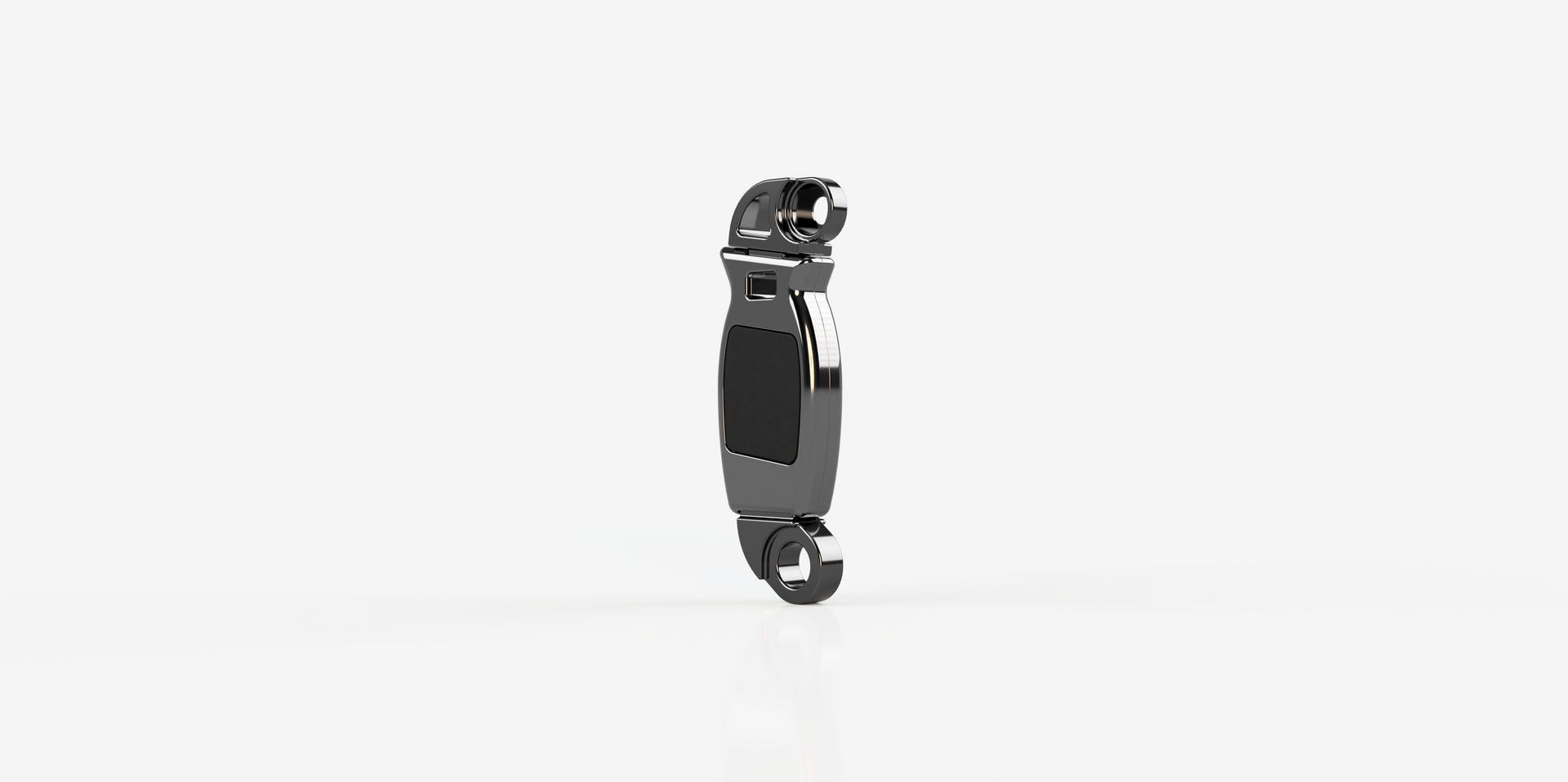

Upcoming Projects
